This equipment utilizes a combination of solvent reflux and centrifugal separation to efficiently and accurately separate asphalt from aggregates. The fully automated operation ensures experimental safety and repeatability. Widely used for asphalt mixture quality control, scientific research, and standard testing, it conforms to international standards and is an ideal asphalt testing device for modern laboratories.

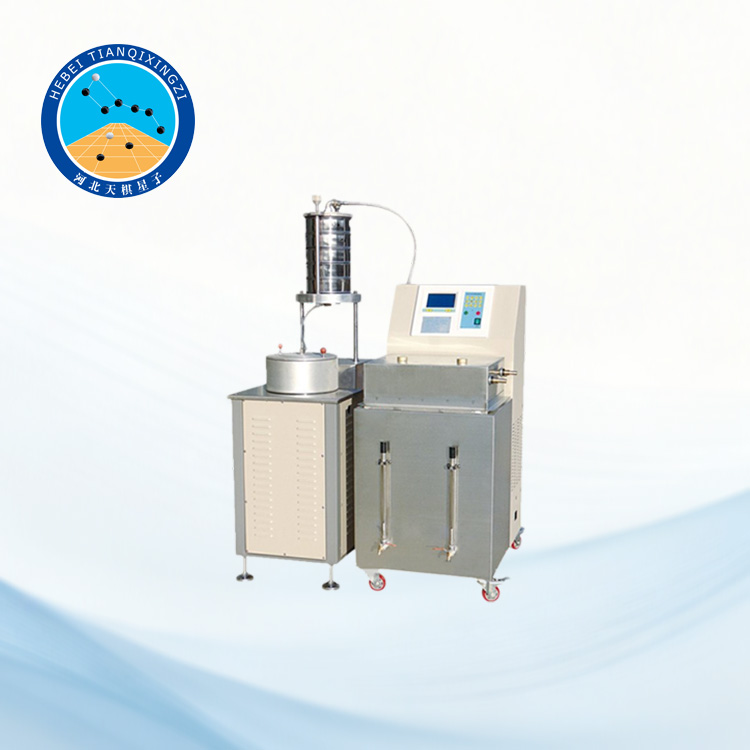

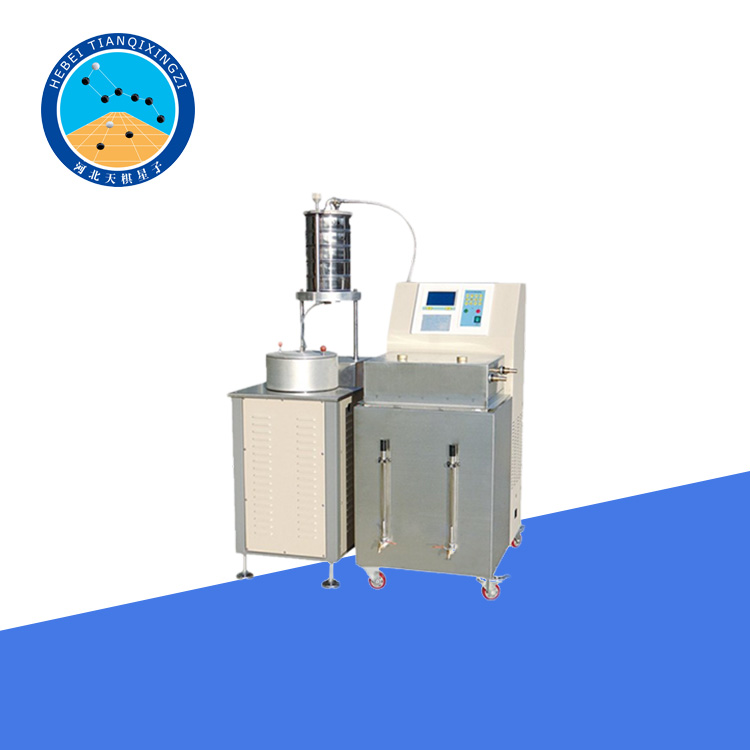

Reflux Centrifuge Asphalt Extractor

Model:TDHLY-E

I.Product Introduction

This product can perform preliminary screening of aggregates to assess the quality of commercial asphalt during road construction.It is also suitable for testing the asphalt content in asphalt and asphalt mixtures during old road surveys.

It is an essential piece of equipment for construction units,laboratories,research institutions,and educational organizations in the highway transportation industry.It can achieve automatic screening,automatic recovery of trichloroethylene,and automatic recovery of mineral powder.

II.Product Features

1.Split design,low vibration and noise.

2.Large LCD screen,displaying the recycling status graphically.

3.The improved vibration table has a frequency of up to 3000Hz,resulting in low noise and high efficiency.

4.The transparent transfer tube allows for observation of the mixing and washing process without stopping the machine.

III.Technical Parameters

1.Sample Capacity:1000g～3000g

2.Extraction Accuracy:0.1%

3.Extraction Time:20～40 minutes/extraction

4.Centrifuge shaft speed:6000 rpm

5.Total power:4 kW

6.Power supply:Three-phase 4-wire 380V 50Hz

7.Net weight:400kg

8.Controller:950×650×1250mm,150kg

Main unit:550×850×1700mm,250kg

9.Ambient temperature:≤35℃

10.Relative humidity:≤85%
