This testing machine is a device used to test the sealing performance and impermeability of water-swellable sealant under different water pressure conditions. It evaluates its water-stopping effect and pressure resistance by simulating the water pressure experienced in engineering projects.

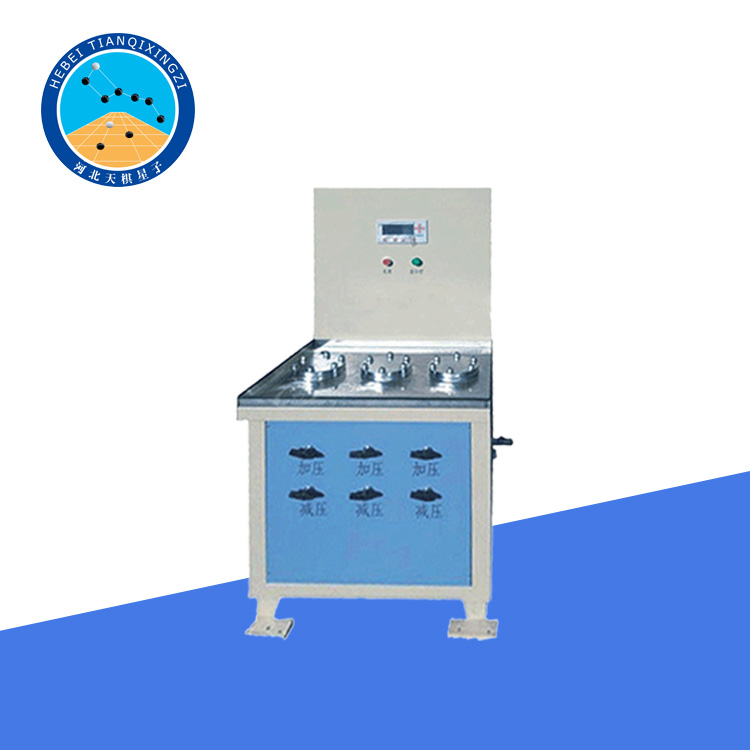

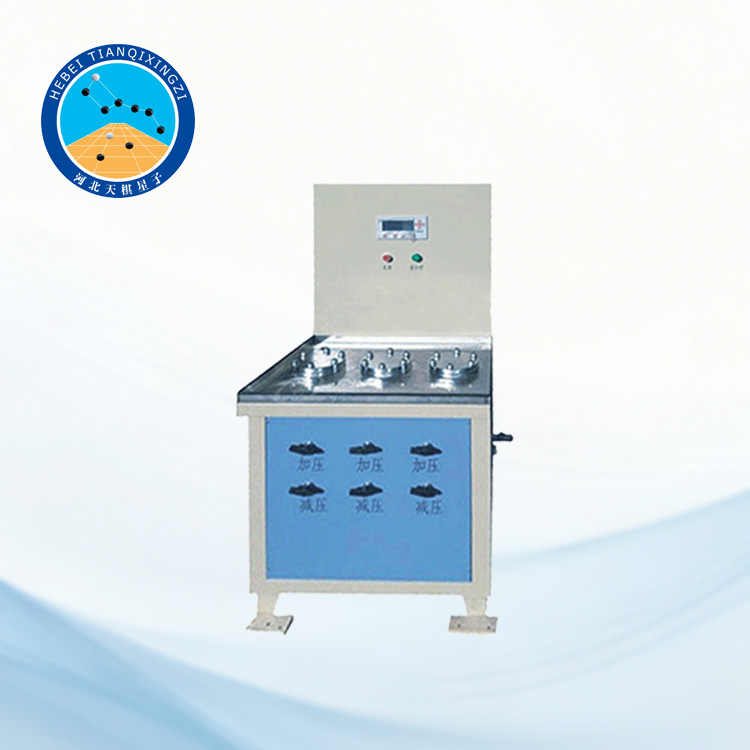

Waterstop glue water stop Water pressure resistance tester

Model:TGHCP-1

I. Product Introduction

The TGHCP-1 Water-Swelling Sealant Water Pressure Testing Machine is developed based on the JG/T 312-2011 Water-Swelling Sealant Test Standard (Appendix A) and the JG/T 141-2001 Water-Swelling Sealant Strip Test Standard. This testing equipment offers stable performance and is easy to operate.

II. Technical Parameters

1. Accuracy: 0.5%

2. Water Collector Diameter: Φ70mm

3. Pressure: 3MPa

4. Test Specimen Groove Width: 10mm Depth: 8mm

5. Self-supplying pressure pump; Voltage: 380V

6. Pressure Adjustment Range: 0~3MPa

7. Overall Dimensions: 830mm*830mm*1500mm

8. Machine Weight: 150kg
