A geotextile thickness gauge is a precision instrument used to measure the thickness of geotextiles and other geosynthetic materials under specified pressure. It ensures that products meet international standards such as ISO 9863 and is widely used in quality inspection, scientific research, and engineering evaluation.

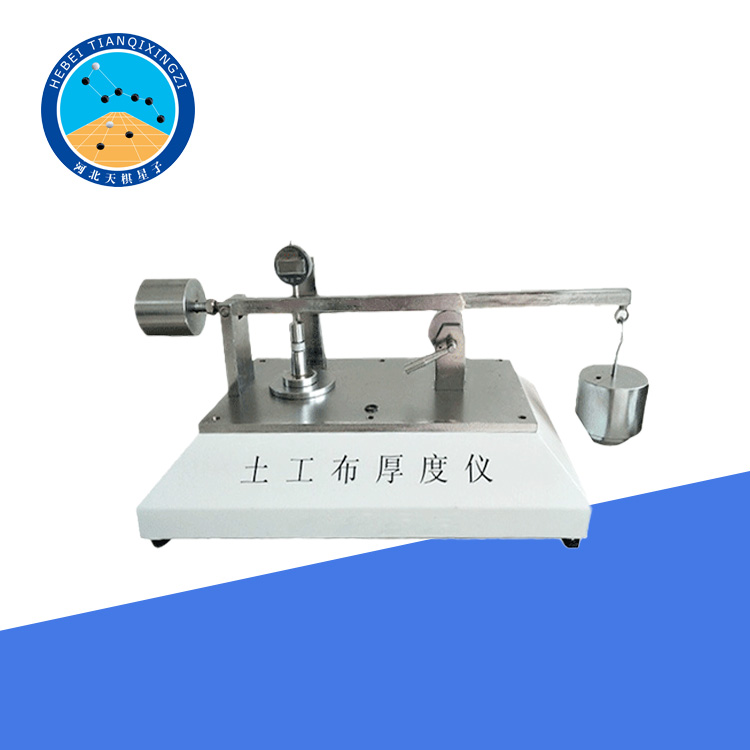

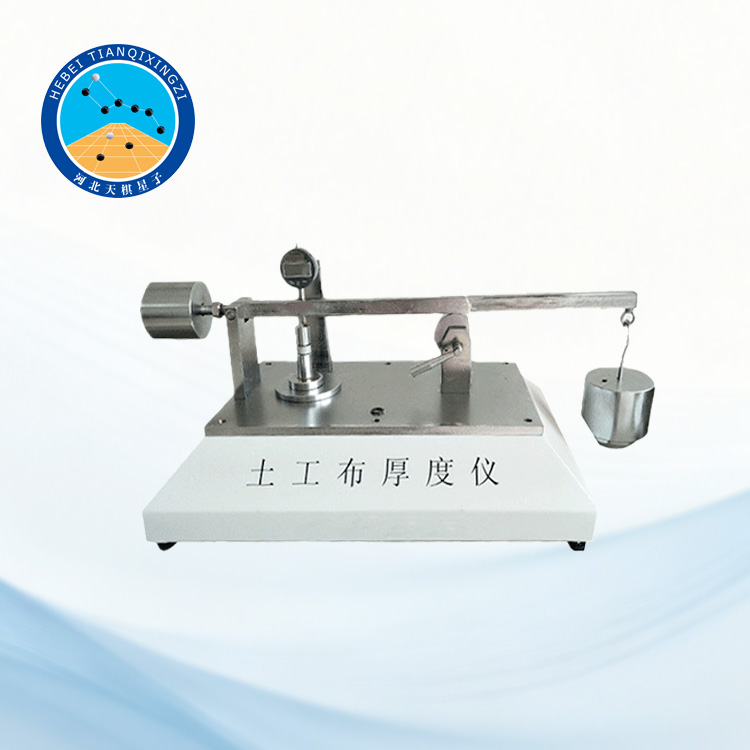

Geotextile Thickness Tester

Model:TGHCO-1

Product Introduction:

This equipment is compatible with testing standards such as GB/T13761 "Determination of thickness of geotextiles", T1112-2006 "Determination of thickness", ISO 9863-1:2016/Amd 1:2019, and ASTM D5199-25. It is an essential instrument for testing the thickness of various geotextiles and geomembranes, and is well-suited for the international market.

Technical Parameters:

1. Presser foot area: 25cm² (circular diameter: Φ56.42mm)

2. Presser foot weight: 5N (presser foot weight: 510.2g±1g)

3. Secondary pressure: 20KPa±0.1KPa

4. Tertiary pressure: 200KPa±1KPa

5. Dial indicator: 0~25mm, minimum division 0.01mm

6. Stopwatch: minimum division 0.1s

(Optional)

7. Dimensions: 850x520x520mm (L*W*H)

8. Instrument weight: 25Kg
