Geosynthetic permeability testers are used to determine the impermeability and hydrostatic pressure resistance of various geosynthetic materials in order to assess their reliability in seepage control projects.

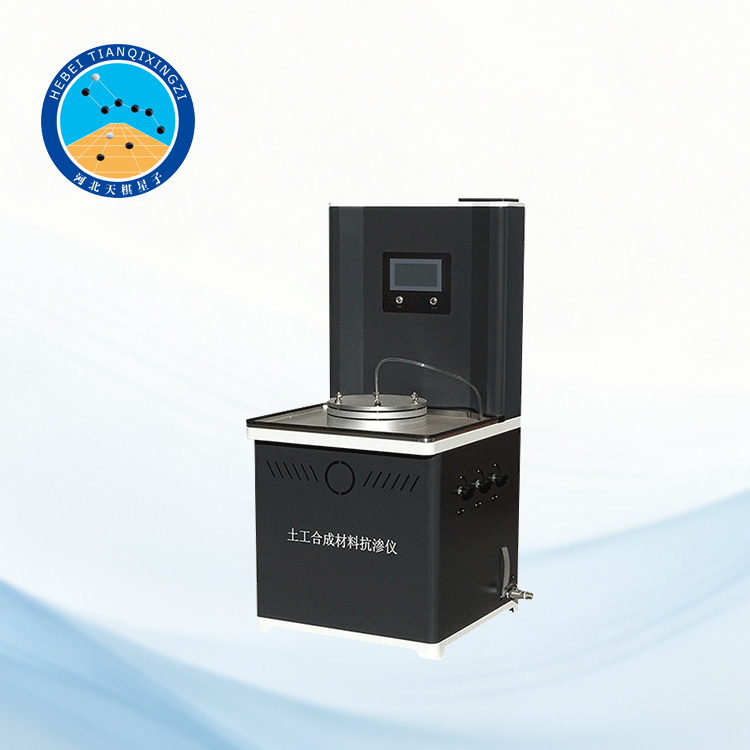

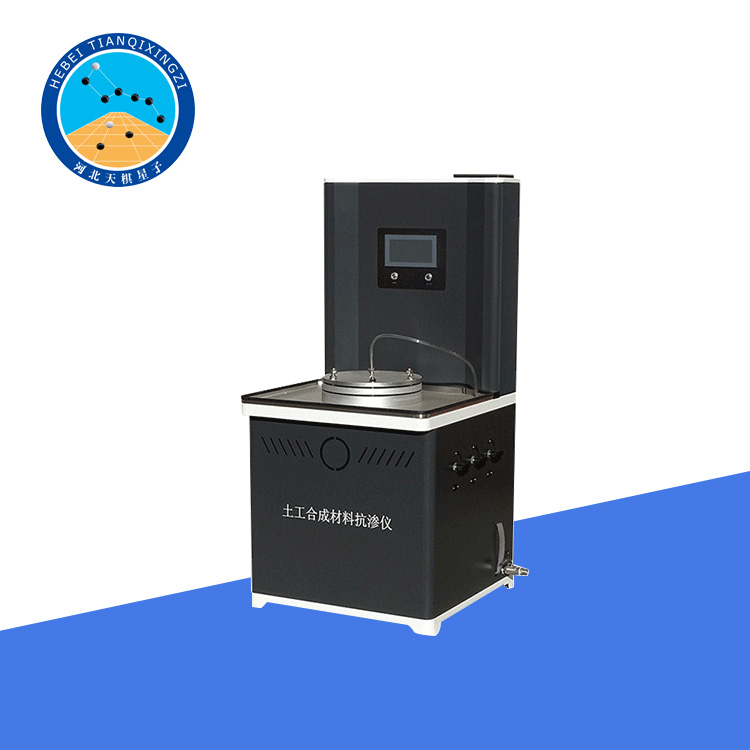

Geosynthetics Impermeability Tester

Model:TGHCK-1

Product Introduction:

This instrument is developed and designed strictly according to national standards such as SL/T 235-1999, JTG E50-2006, GB/T 19979.1-2005 (Geosynthetic Materials Impermeability and Hydrostatic Pressure Resistance) and GB/T 19979.2-2006 (Geosynthetic Materials Impermeability and Permeability Coefficient). It is suitable for testing the impermeability (water resistance) and permeability coefficient of various geosynthetic materials. The equipment is stable in performance and easy to operate, meeting the needs of laboratory and engineering testing.

Furthermore, this instrument fully complies with international standards such as ISO 11058:2019, ASTM D4491/D4491M-22, ASTM D5385/D5385M-25, and ASTM D5886, making it suitable for the international market and particularly suitable for export.

Product Features:

Upgraded to an 8-inch LCD controller with full touchscreen operation.

Equipped with dedicated testing software, supporting manual/automatic pressurization and one-button depressurization.

Features a large stainless steel worktable, rust-resistant and corrosion-resistant, facilitating testing operations.

Uses aviation-grade aluminum clamps for durability.

Built-in water tank for automatic water supply.

Equipped with a drain outlet for easy water drainage after testing.

Technical Parameters:

Measuring Range: 0~2.500MPa

Touchscreen control, resolution: 0.001MPa

Water collector inner diameter: 200mm

Perforated plate through-hole diameter: 3±0.05mm

Perforated plate through-hole spacing: 6mm

Power supply voltage: AC380V 50Hz (three-phase four-wire)

Dimensions: 830x830x1500mm
