A cement consistency meter is a laboratory instrument used to measure the consistency (flowability or plasticity) of cement mixed with water in a specific ratio, in order to evaluate the workability and construction suitability of cement before initial setting.

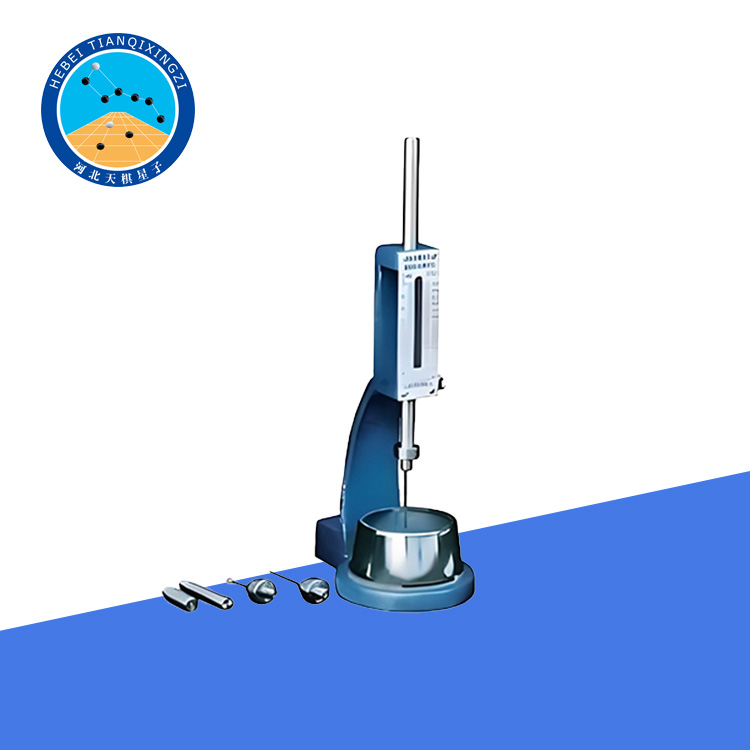

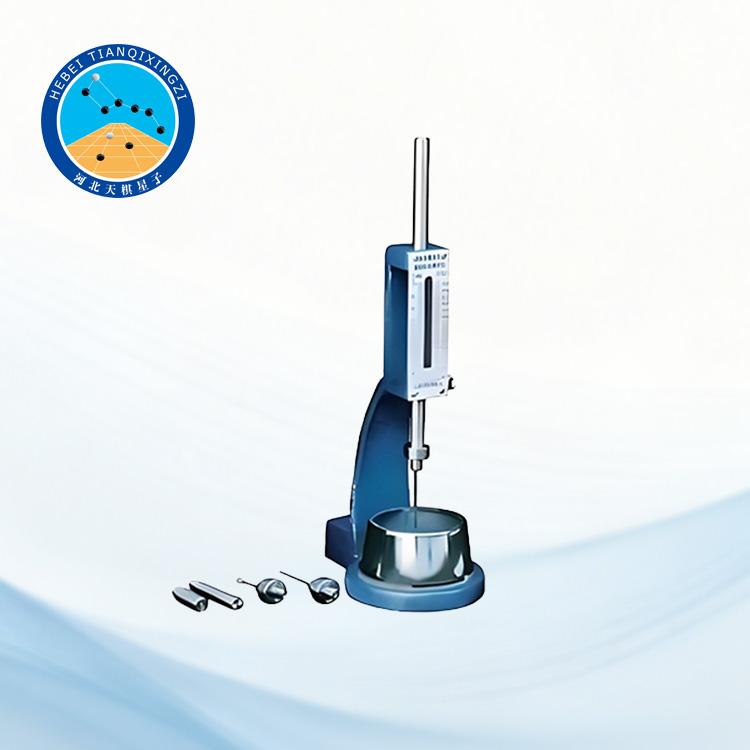

Cement Consistency Tester

Model:SN001-1

I. Product Introduction

This instrument is designed and manufactured according to GB/T 1346-2001 "Standard Consistency Water Requirement, Setting Time and Soundness Test Methods for Cement Paste", and is suitable for testing the relevant performance of silicate cement, ordinary cement, slag cement, pozzolanic cement, fly ash cement and other types of cement. The equipment also meets the requirements of international standards such as EN 1015-3, ASTM C1437-20, ASTM C187-23, EN 196-3:2016 and ISO 679:2009, and can be used for domestic testing and export applications.

II. Technical Parameters

1. Total weight of sliding parts: 300g±1g;

2. Standard consistency test rod: 1 piece. Effective length 50mm±1mm, diameter Ф100mm±0.05mm

3. Initial setting test needles: 2 pieces. Effective length 50mm±1mm, diameter Ф1.13mm±0.05mm.

4. Final setting test needle: 1 piece. Effective length 30mm±1mm, diameter Ф1.13mm±0.05mm.

5. Experimental environment temperature: Laboratory temperature (20±2)℃, relative humidity ≥50%.

6. Cure temperature of cement paste: temperature of curing box (20±1)℃, relative humidity ≥90%.
