Fully automatic laboratory compactor that forms standardized, high-density raw meal specimens (nodules/pellets) for cement raw meal burnability testing and subsequent laboratory calcination.

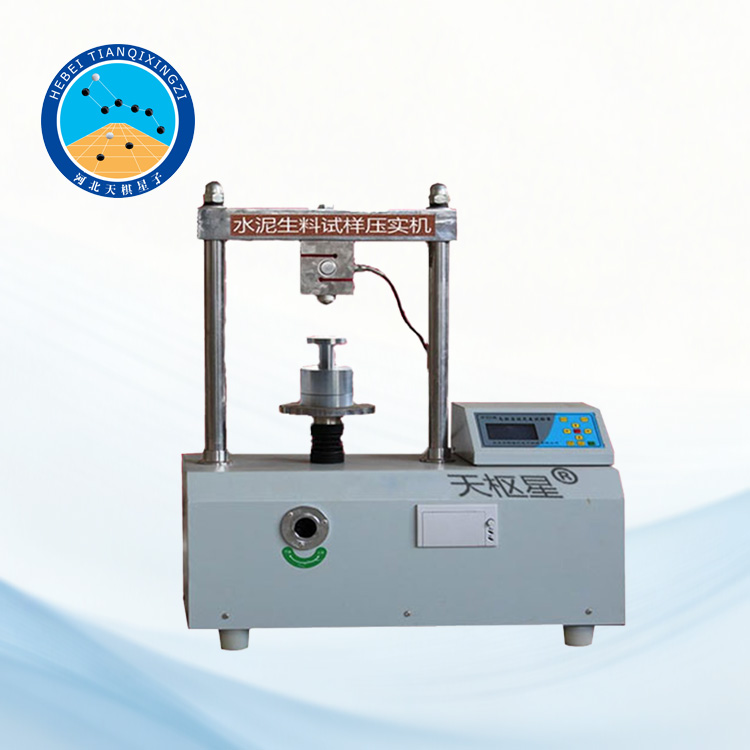

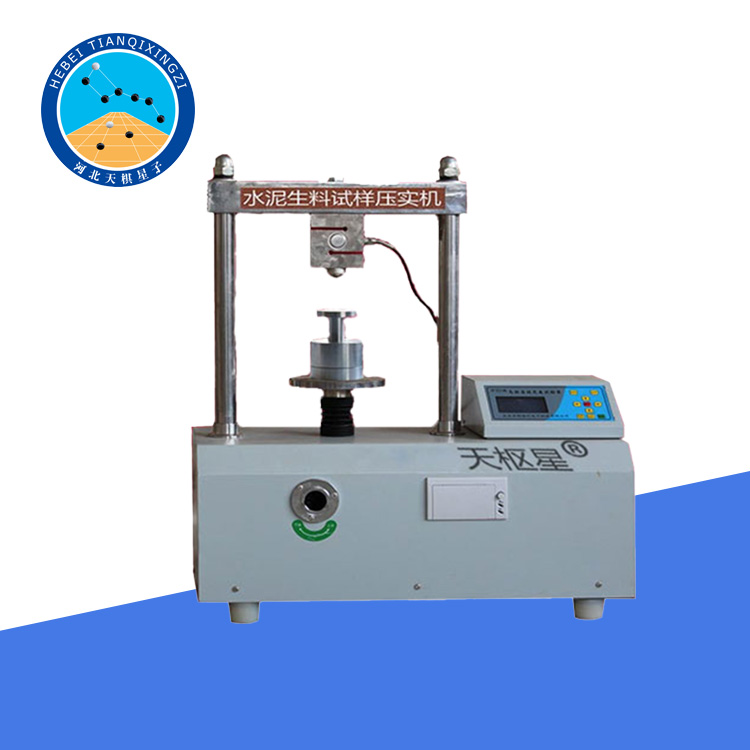

Automatic Compactor for Cement Raw Meal Burnability Test Specimens

Model:SN2025-BD001

I.Product Introduction:

The SN2025-BD fully automatic compactor for cement raw meal scalability testing and its molds were developed and manufactured by Hebei Tianqixingzi Inspection Equipment Co.,Ltd. in accordance with GB/T 26566—2011 "Test Method for Scalability of Cement Raw Meals". It is suitable for specimen molding in cement raw meal scalability testing. The equipment also meets the requirements of international standards such as ISO 679:2009, ASTM C109/C109M-24, and prEN 196-1 rev, and can be used for export and various international projects.

II. Technical Parameters:

1.Product Material:304 Stainless Steel

2.Product Specifications:Φ40×55mm

3.Moldable Sample Size:Φ13(Height subject to actual height)

4.Main Unit Model:

SN2025-BD001 Manual Digital Display Compactor for Cement Raw Material Burnability Specimens

SN2025-BD002 Fully Automatic Compactor for Cement Raw Material Burnability Specimens

5.Maximum Load of Main Unit:30KN

6.Control Method:SN2025-BD001 is manually controlled;SN2025-BD002 is a fully automatic computer single-chip microcomputer controlled.

7.Rated Voltage:220V

8.Rated Power:SN2025-BD001 is 50W;SN2025-BD002 is 500W
