This equipment is used to accurately measure the mortar thickness of cement concrete surfaces, ensuring that airport concrete paving construction, road and bridge construction, laboratory testing, etc., meet the specifications, and assisting in construction quality control and acceptance.

Cement Mortar/Concrete Thickness Tester

Model:TDMH-5006

I.Product Introduction

The concrete mortar thickness gauge is used to accurately measure the thickness of mortar in cement concrete surface layers,and is particularly suitable for airport cement concrete surface layer construction.The instrument consists of an outer ring cutter,an inner ring gauge,and a digital depth caliper,enabling high-precision measurement.This equipment complies with MH 5006-2015"Technical Specification for Construction of Cement Concrete Surface Layers in Civil Airports,"ensuring reliable construction quality inspection standards.

II.Application Areas

Airport Engineering:Testing the thickness of the concrete mortar layer on runways

Road and Bridge Construction:Ensuring the quality of pavement construction

Laboratory Testing:Used by research and quality inspection institutions

III.Working Principle

Sampling:An outer ring cutter is used to cut and sample the concrete surface.

Measurement:The inner ring is inserted into the outer ring cutter,and the mortar layer thickness is measured using a depth gauge.

Calculation:The actual thickness of the mortar layer is calculated based on the depth gauge reading to ensure it meets construction standards.

IV.Technical Parameters

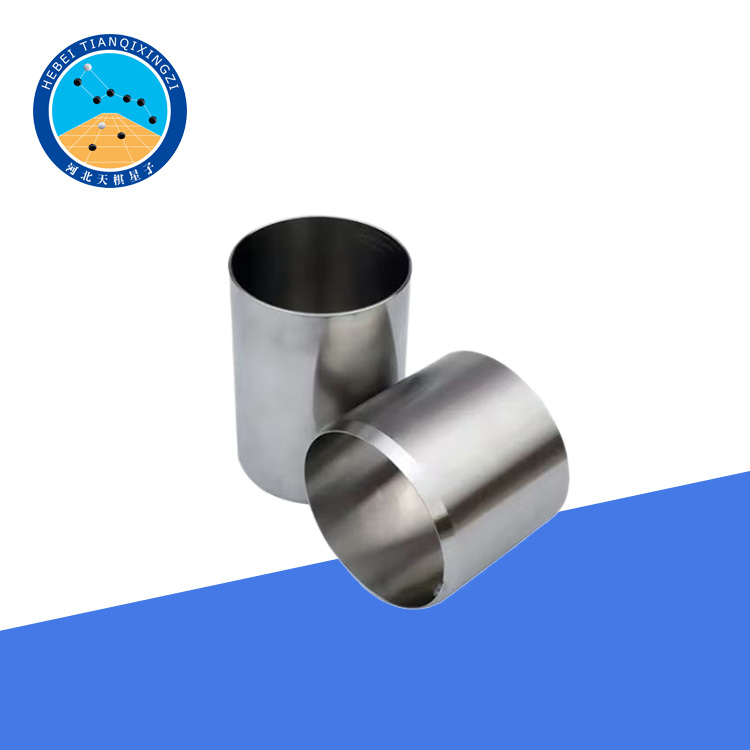

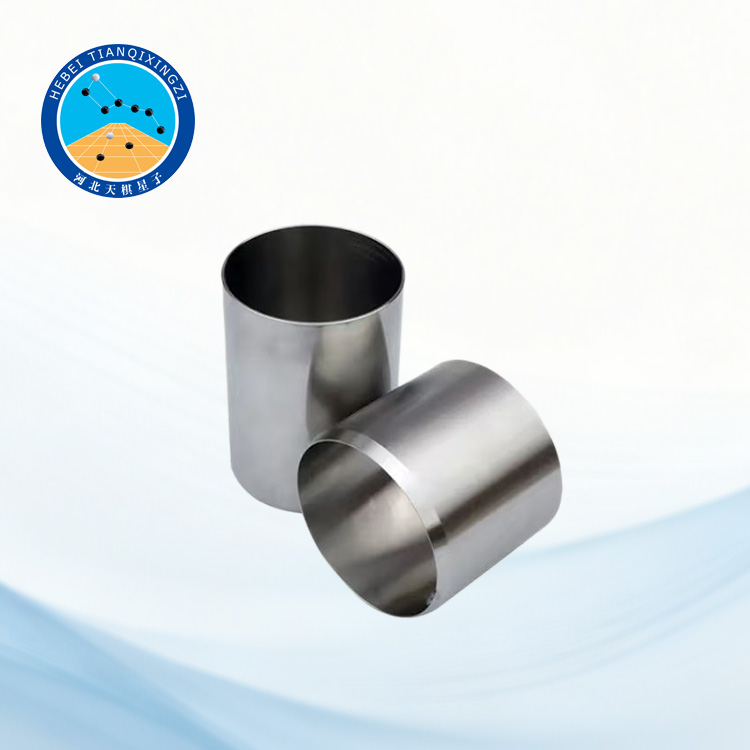

1.Outer Ring Cutter:Outer diameter 80mm,inner diameter 75mm,wall thickness 2.5mm,height 70mm,cutting edge height 6.5mm

2.Inner Ring Cylinder:Outer diameter 74mm,inner diameter 71mm,wall thickness 1.5mm,height 100mm

3.Depth Gauge:Measuring range 150mm,display accuracy 0.01mm
