Automatic Soxhlet extractors widely comply with international standards such as ISO, ASTM, and AOAC, and are suitable for standardized extraction and analysis of fats and soluble organics in food, feed, oils, agricultural products, rubber, and chemical materials.

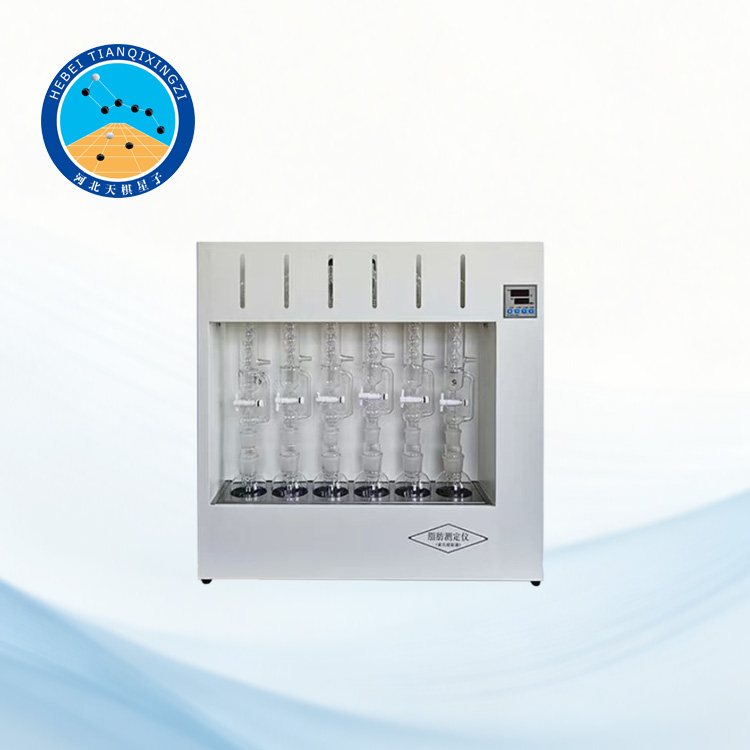

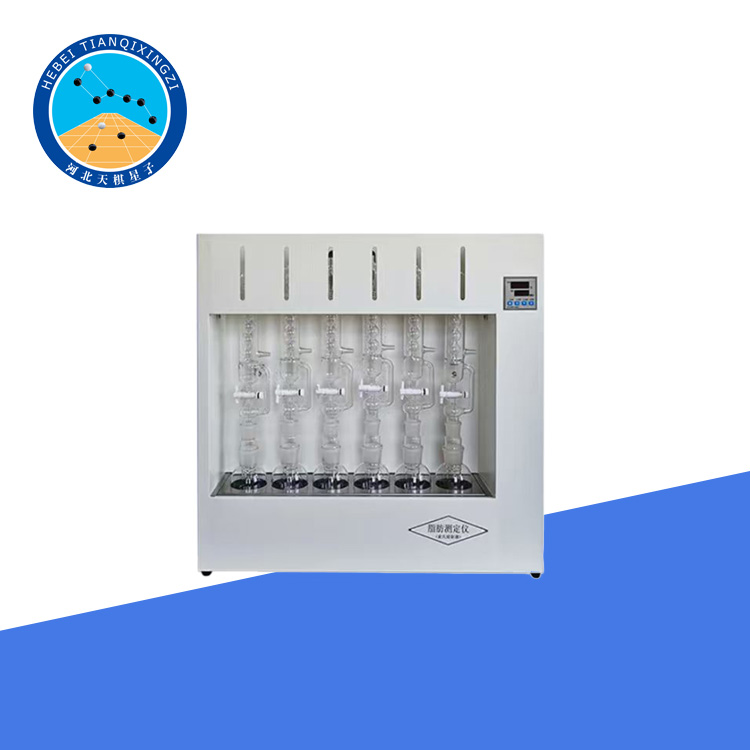

Soxhlet Extractor

Model:TDSXT-06

I.Product Introduction

The Soxhlet extractor consists of three parts:an extraction flask,an extraction tube,and a condenser.During operation,the heating temperature can be adjusted according to the boiling point of the reagent and the ambient temperature.The sample is repeatedly immersed and extracted during the extraction process,thus achieving rapid determination.Based on Soxhlet extraction technology,it efficiently extracts fatty components from samples through solvent reflux and siphon principles.

The working principle is to place the sample in a filter paper tube,and the solvent evaporates after heating.After condensation,the solvent is dripped back into the sample.This process is repeated,involving repeated soaking and extraction.Finally,the solvent containing fat is siphoned back to the extraction bottle to achieve efficient extraction.

II.Main Features

1.Compact size,rapid and uniform heating via water bath.

2.All instruments in the series use glass ground joints to avoid leakage problems caused by ether deformation when using rubber sealing rings.

3.Highly integrated instrument with digital display temperature control and timing function,offering free and convenient control.

4.It consists of three main parts:heating extraction,solvent recovery,and cooling.

5.The sample is repeatedly soaked and extracted during the extraction process to achieve rapid extraction.

6.It can automatically recover the solvent,greatly simplifying the user experience and saving a lot of time.

7.The extraction time is adjustable,and an alarm will be triggered when the extraction time is up.

III.Technical Parameters

Testing Range:Grains,feed,oilseeds,and various fat products with oil content ranging from 0.5%to 60%

Number of Samples Tested:2,4,6

Controller:Digital display

Heating method:Water bath heating

Temperature control method:Uniform temperature control

Temperature control range:Room temperature-100℃

Temperature control accuracy:±0.5℃

Solvent recovery rate:≥80%

Recovery system:Automatic

Heating time:Approximately 10 minutes

Heating power:1000W

Power supply voltage:220V 50Hz

Dimensions:425*230*840 m
