The Asphalt Evaporation Loss Aging Test Oven is used to evaluate asphalt binder volatility and aging under controlled high-temperature conditions, ensuring reliable quality control and research data.

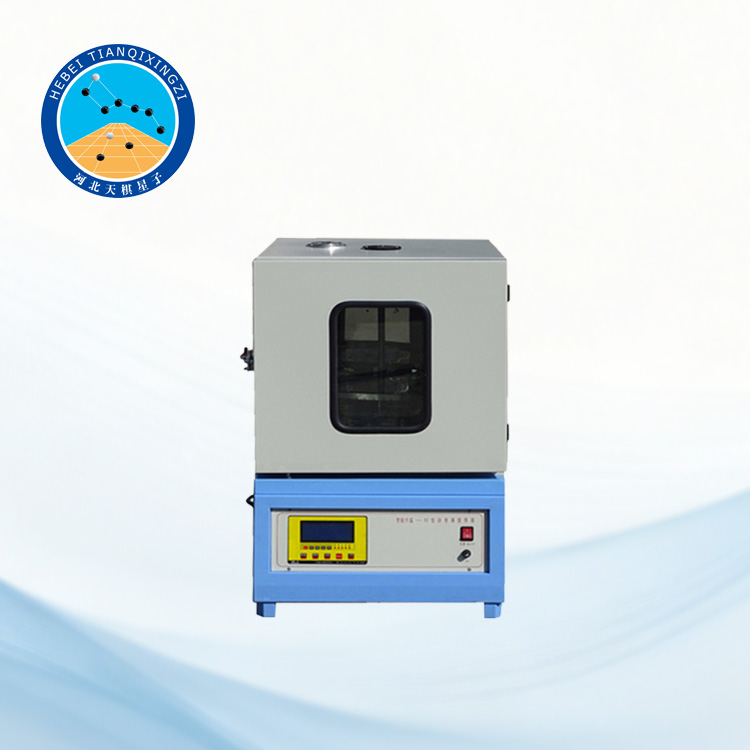

Asphalt Aging Oven

Model:TDZF-0608

I.Product Introduction

The asphalt evaporation loss aging test chamber is a specialized testing equipment used to determine the performance changes of road petroleum asphalt under heated conditions.It is widely used in highway engineering,building materials testing,and other fields.

The asphalt evaporation loss aging test chamber is mainly used to simulate the aging process of asphalt under high temperature conditions and to determine its evaporation loss and performance changes.The equipment is designed in accordance with the requirements of T0608-2011"Asphalt Evaporation Loss Test"in the People's Republic of China industry standard JTGE20-2011"Test Procedures for Asphalt and Asphalt Mixtures in Highway Engineering",and also with reference to ASTM D1754/D1754M-20(2025)e1"Standard Test Method for the Effect of Hot Air on Asphalt Materials(Thin Film Heating Aging Test)".

II.Product Features

High-precision temperature control:Adopts an advanced temperature control system to ensure that the test temperature is stable at 163℃±0.5℃.

Uniform Heating:The turntable design ensures uniform heating of the asphalt sample,improving test accuracy.

Compliance with Standards:Strictly adheres to national and industry standards,suitable for testing the aging performance of road asphalt,modified asphalt,and other materials.

III.Technical Parameters

1.Operating Power Supply:AC 220V±10%,50Hz;

2.Rated Power:2.5kW;

3.Chamber Temperature:163℃±0.5℃;

4.Temperature control accuracy:±0.5℃;

5.Turntable speed:5.5r/min±1r/min;

6.Sample quantity:6 samples;Sample dishes:6;Inner diameter:55mm;Depth:35mm

7.Working chamber dimensions:450mm×450mm×510mm(Length×Width×Height)

8.Ambient temperature:(5~50)℃

9.Relative humidity:≤85%
