This direct shear preloader is a specialized pre-consolidation apparatus designed to apply controlled vertical pressure to soil samples prior to fast direct shear testing, ensuring proper drainage and specimen stabilization.

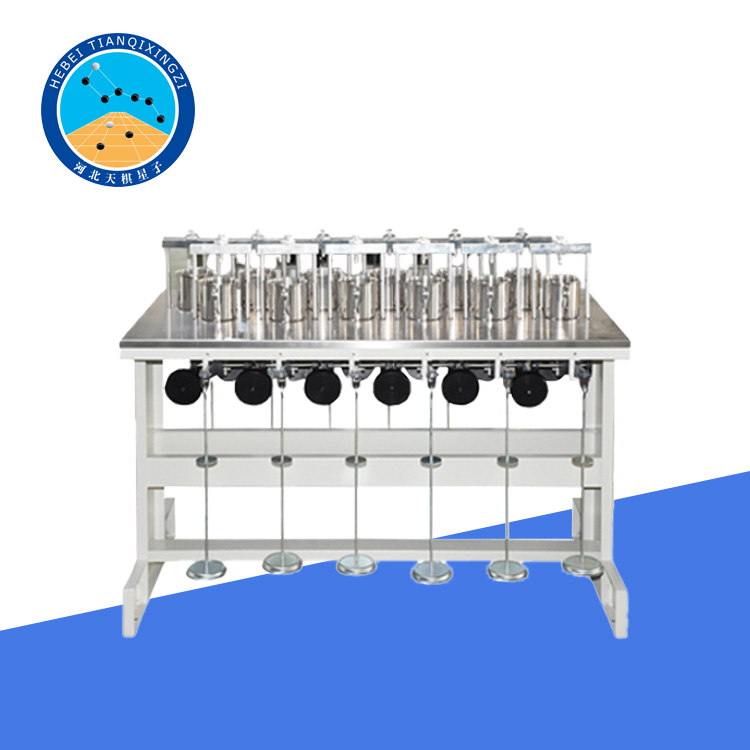

Duodenary Direct Shear Pre-Pressing Apparatus

Model:TGSYL-2

I.Product Introduction

This instrument applies vertical pressure to soil samples and is a specialized pressure apparatus for providing specimens for consolidated rapid shear tests after soil samples have been drained and stabilized.Its features include:each container can hold three soil samples,high utilization rate,small footprint,and unique design.Compliant Standards:GB/T50123-2019"Standard for Geotechnical Testing Methods"and ISO 17892-10:2018—Geotechnical investigation and testing—Laboratory testing of soil—Part 10:Direct shear tests.

II.Product Features

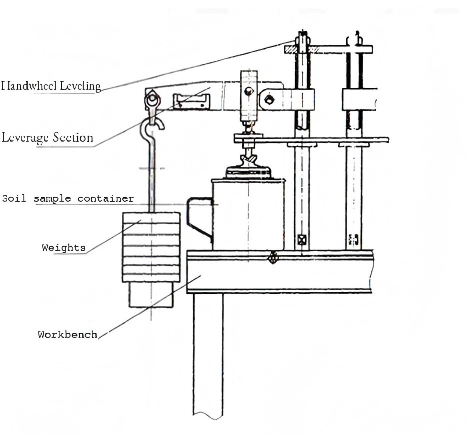

1.Employs the lever principle,equipped with a complete set of weights,with a lever-to-lever ratio of 1:12,for pre-compression and consolidation of the specimen.

2.Equipped with a standard pre-compression container,providing a saturated air environment throughout the soil sample pre-compression process,improving data accuracy.

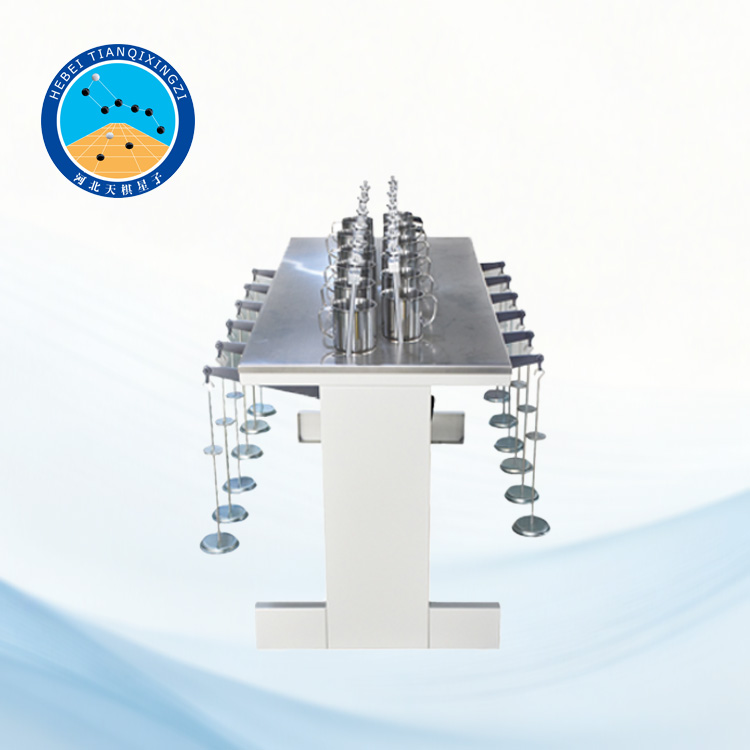

3.Standard configuration includes 12 sets of pre-compression devices,allowing for the pre-compression of up to 36 specimens at a time.

III.Technical Parameters

Sample Area:30cm²

Maximum Load:1.2KN

Lever Ratio:1:12

Maximum Pressure:400Kpa

Loading Method:Weights

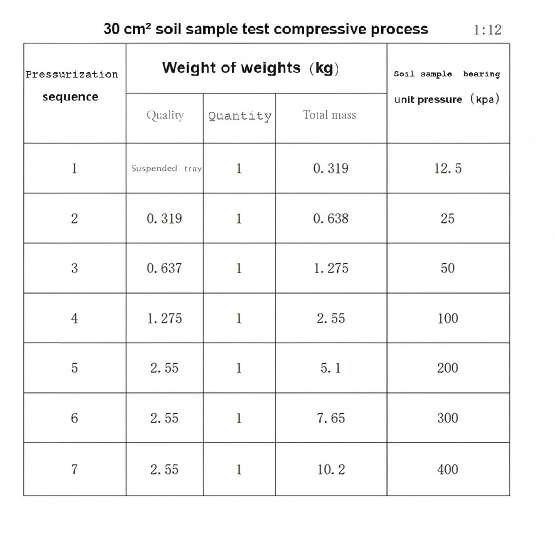

Pressure Rating:50,100,200,300,400(Kpa)

Soil Sample Containers:12

Sampling Capacity:36 samples

Instrument Dimensions(mm):Length 1250 x Width 850 x Height 1000
