This equipment is a specialized experimental device used to test the compressive strength of frozen soil under low-temperature conditions. It is mainly used in engineering and scientific research in cold regions to evaluate the mechanical properties of frozen soil under compressive conditions.

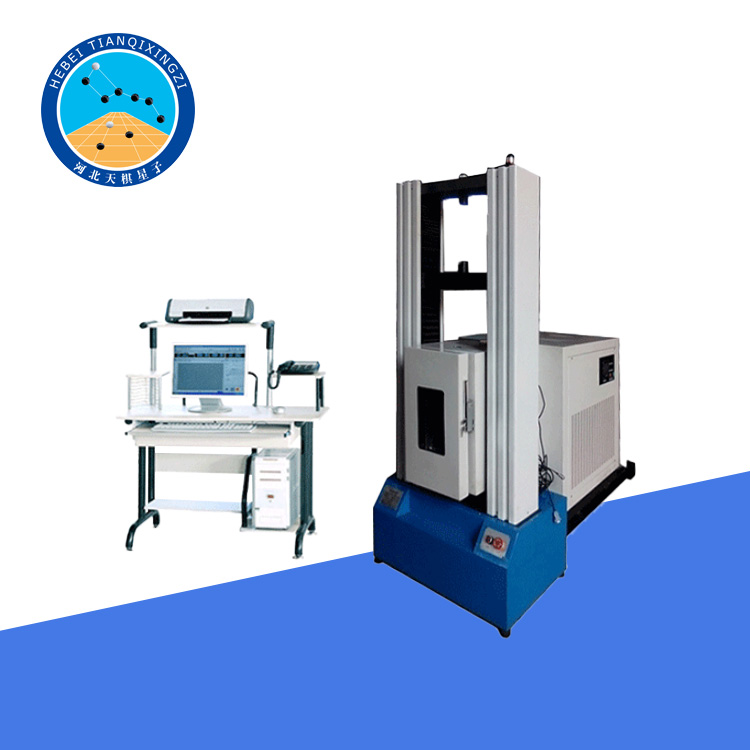

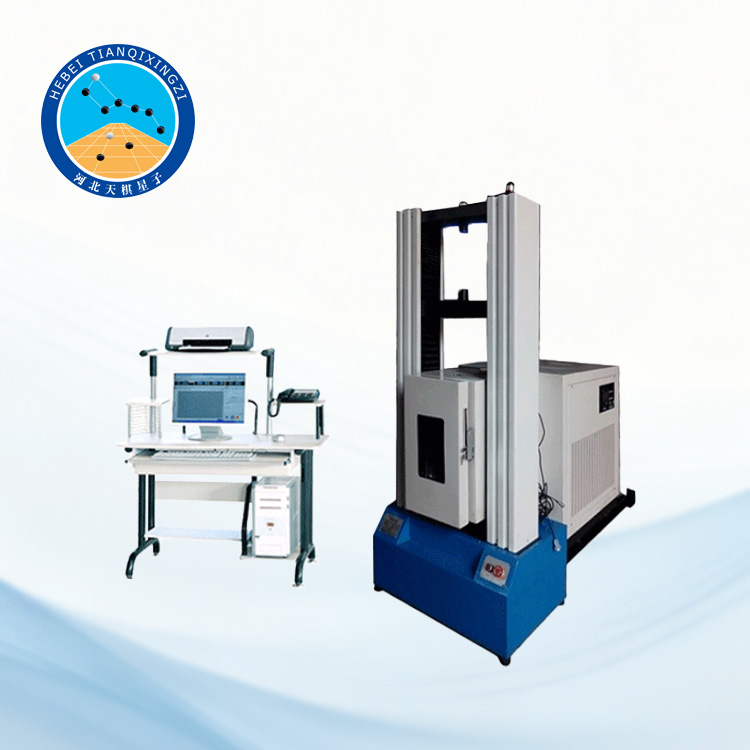

Frozen Soil Uniaxial Compression Tester

Model:TGSYE-1

I.Product Functions

This computer-controlled frozen soil testing machine strictly complies with the technical requirements of national industry standards MT/T 593.4-1996"Test Method for Physical and Mechanical Properties of Artificial Frozen Soil-Part 4:Test Method for Uniaxial Compressive Strength of Artificial Frozen Soil"and MT/T 593.6-1996"Test Method for Uniaxial Compression Creep of Artificial Frozen Soil",as well as the international standard ASTM D5520-19"Laboratory Method for Determination of Uniaxial Compression Creep Properties of Frozen Soil Samples".The equipment can simultaneously and accurately measure the test force,axial deformation,and radial deformation of the specimen.The test process is automatically controlled by a microcomputer,which collects and calculates various test data in real time.The system can automatically generate and print test reports,including test data,stress-strain curves,and current test temperature,ensuring efficient,reliable,and complete testing.

The sophisticated automatic control and data acquisition system enables fully digital adjustment of the data acquisition and control process.After the experiment,the computer automatically calculates the results based on the test parameters set at the beginning of the experiment and displays the corresponding test results.Each test parameter can be queried and displayed after the experiment,or it can be printed out by connecting to a printer.

II.Technical Specifications

Test Force:100 kN

Test Force Resolution:1/±300,000

Indicated Value Relative Error:Better than±1%

Minimum Deformation Reading:0.001 mm

Crosshead Travel Speed Range:0.005–200 mm/min

Force Control Rate Adjustment Range:0.005–5%FS/s

Effective span of testing machine:610mm

Effective compression space of testing machine:0-400mm

Loading method:Electric

Power supply voltage(reliable grounding required):Testing machine~220V±10%,50Hz;

High/low temperature control box~380V±10%,50Hz

Power:Testing machine 1.5 kW;Temperature control box 7.0 kW

Overall dimensions of testing machine:1080 x 2100 x 2320 mm

Total weight of testing machine:≈1800 kg
