The Marshall Stability Test Machine with Digital Display is designed to measure the stability and flow values of asphalt mixtures, assessing their resistance to plastic deformation. Equipped with a digital display, it provides accurate and easy-to-read results, helping engineers optimize asphalt mix design and ensure pavement quality.

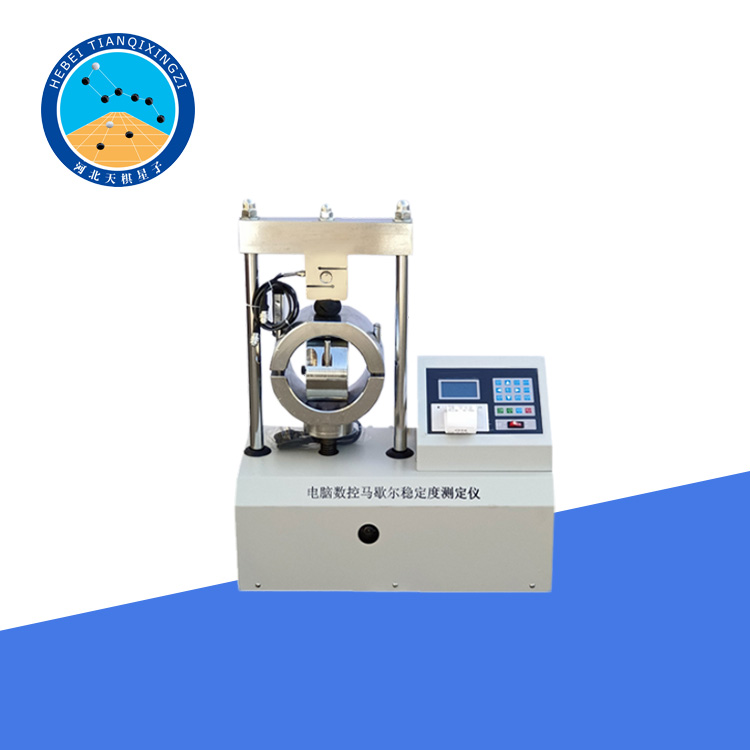

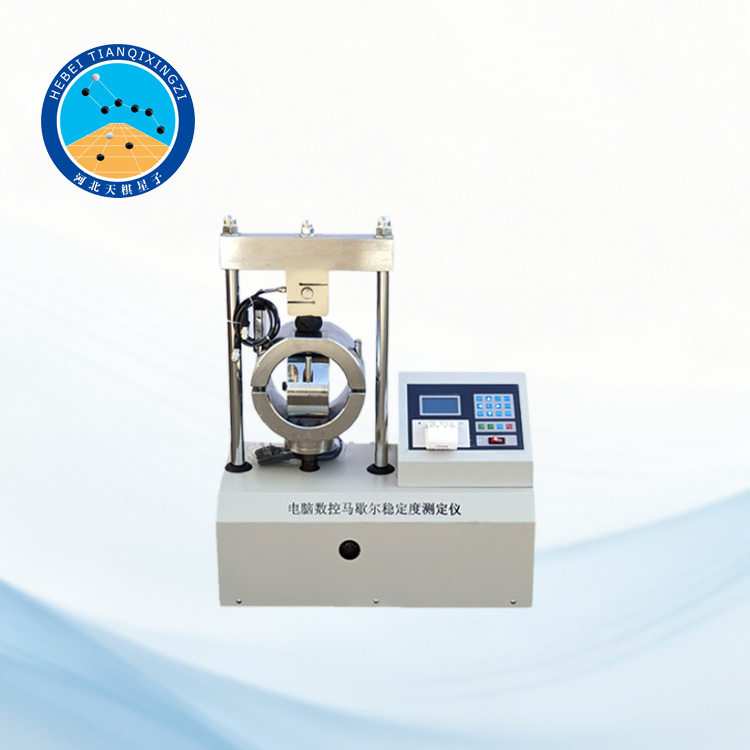

Marshall Stability Test Machine with Digital Display

Model:TD-3AW

I.Product Introduction

This Marshall Stability Test Machine with Digital Display is designed in accordance with the Chinese national standard JTG E20-2011 for highway engineering asphalt and asphalt mixture testing.It also references international standards including ASTM D5581-25,ASTM D6927-22,AASHTO T245,BS 598-107,and EN 12697-34:2023.The machine is used to determine the stability and flow values of asphalt mixtures,evaluating their resistance to plastic deformation,and providing accurate data for mix design and optimization of asphalt pavement.

II.Technical Parameters

Rise Rate:(50±5)mm/min

Indenter Diameter:(101.6±0.2)mm;(152.4±0.2)mm

Maximum Pressure:30 kN;50 kN(1%accuracy)

Flow rate range:0-15.00 mm(accuracy±0.1 mm)

Ambient temperature:≤30°C

Relative humidity:≤85%

Total power consumption:≤700W
